Full Auto Injection Molding Machine 15 Ton Shuttle Table

full auto injection molding machine 15 ton shuttle table 1.in-line screw type injection apparatus.2.temperature control.three-stage.fast,back pressure,screw speed stepless adjustment for a variety of precision plastic parts molding.3.the lower mold fixed on the movable mold,insert items for a good positioning of the resista

Featured Products

full auto injection molding machine 15 ton shuttle table



1.in-line screw type injection apparatus.

2.temperature control.three-stage.fast,back pressure,screw speed stepless adjustment for a variety of precision plastic parts molding.

3.the lower mold fixed on the movable mold,insert items for a good positioning of the resistance,and has finished top of the device.

4.the low-pressure mold clamping device protection security.

5.the tube can lift,clean and convenient material head,fixed moldeasier.

Full Auto Injection Molding Machine 15 Ton Shuttle Table

Full Auto Injection Molding Machine 15 Ton Shuttle Table
Full Auto Injection Molding Machine 15 Ton Shuttle Table




Parameter of Machine
ModelUnit JY-160S2
Screw Barrel Diametermm2628
Injection Pressurekg/cm211831019
Max. Shot Weightgram5058
Max. Shot Weightcm3/sec34.640
Screw Barrel Routemm105
Screw Barrel Rotary Speedrpm0-215
Nozzle Contact Forcetons4.45
Nozzle Retraction Nozzlemm130
Number of Temperature Controlpcs2
Clamping Forcetons15
Platen Sizemm450*280
Distance Between Tie Beremm265
Min. Mold Heightmm100/25
Opening Strokemm190
Max. Opening Mold Distancemm290/215
Ejetor Forcetons1.3
Ejetor Stokemm35
Max. Hydraulic Pressurekg/cm2140
Pump OutputL/min17.5
Oil Resservoir CapacityLiter80
Cooling Water ConsumptionL/hr400-600
Pump Motor Powerkw/hp2.2/3HP
Barrel Heating Powerkw1.8
Total Powerkw4.2
Machine Weighttons0.45
Machine Dimension(LxWxH)meter1.35*0.92*2.06
Shipping Weighttons0.6
Shipping Measurements(LxWxH)meter1.3*1.0*2.23

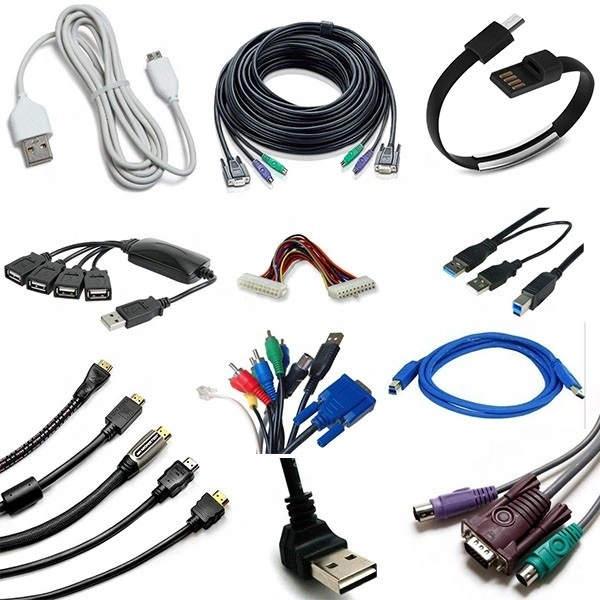

Application :
Full Auto Injection Molding Machine 15 Ton Shuttle Table


Full Auto Injection Molding Machine 15 Ton Shuttle Table

Full Auto Injection Molding Machine 15 Ton Shuttle Table


Full Auto Injection Molding Machine 15 Ton Shuttle Table

About Us

Full Auto Injection Molding Machine 15 Ton Shuttle Table
Full Auto Injection Molding Machine 15 Ton Shuttle Table

Full Auto Injection Molding Machine 15 Ton Shuttle Table


Packing & Shipping :
Full Auto Injection Molding Machine 15 Ton Shuttle Table




Our Services
1) 24 hours services, the answers to any questions will be replied sooner.
2) Direct factory services, exclusive and unique solution can be provided to you by our professional engineers and staffs teams.
3.)Materials suppliers offered ,the contact ways to different kinds of the materials and equipments of your products can be supported here, you can contact them by yourself .
4) After-sales services, engineers available to service  machinery overseas; besides, the videos and document of solution will be sent at once.
5) The full and specific set of the subject for your project will be offered for you by free after we get touch with you.
6)12 Months Warranty and spare parts of machine will be offered within 3 days to avoid to waste your production time.
