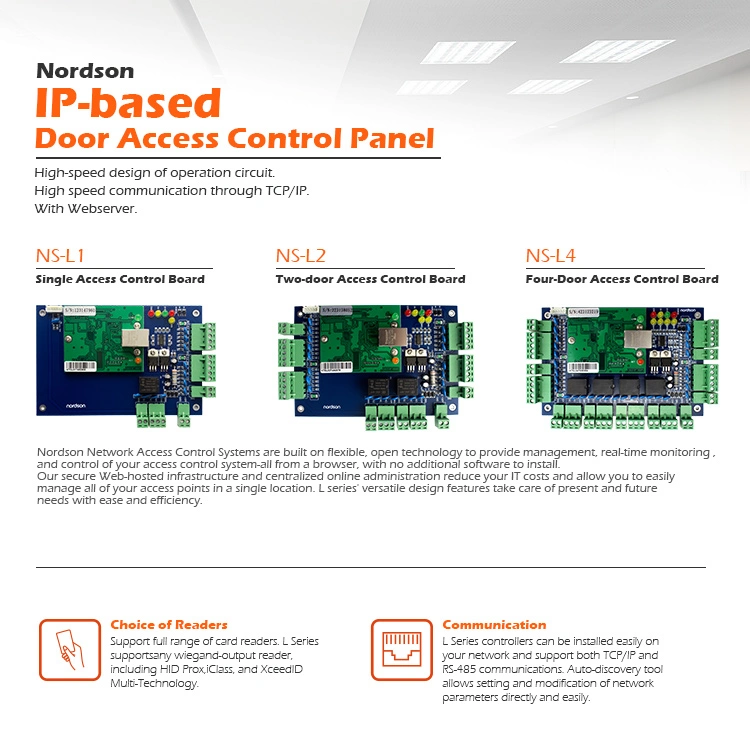

IP-Based Double Door TCP/IP Access Control System Access Control wiegand access control board
Product function:
1. The standard TCP / IP communication, multi-stage lightning protection, surge protection

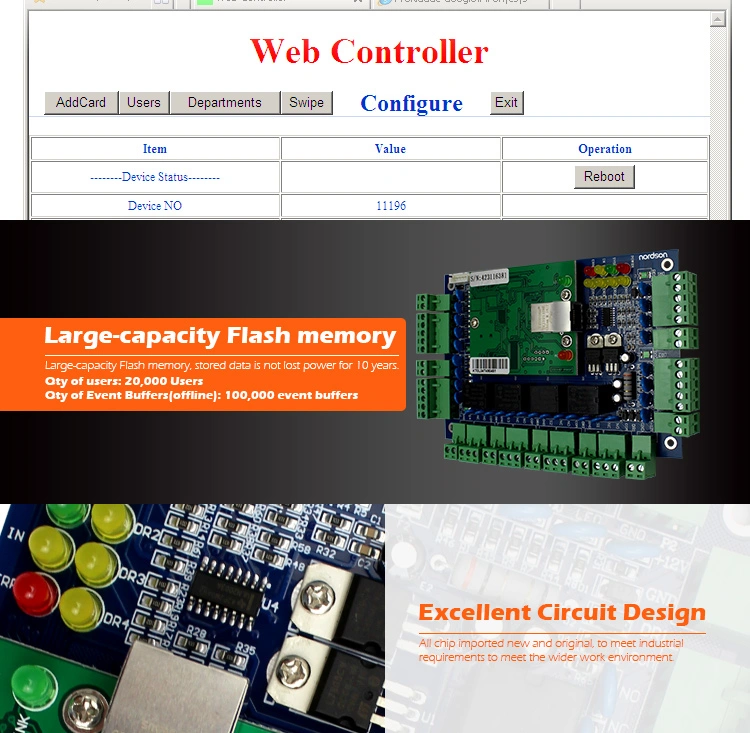

2. Large-capacity Flash memory, stored data is not lost power for 10 years
3. All chip imported new and original, to meet industrial requirements to meet the wider work environment

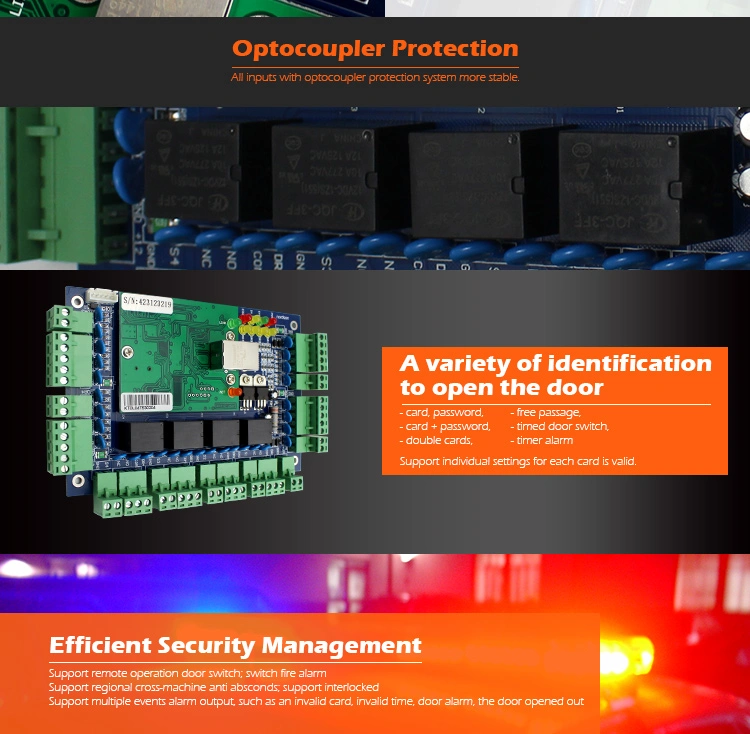

4. All inputs with optocoupler protection system more stable
5. Identification of a variety of ways to open the door: card, password, card + password, double cards, free passage, timed door switch, timer alarm
6. Support remote operation door switch; switch fire alarm
7. Support regional cross-machine anti absconds; support interlocked
8. Support multiple events alarm output, such as an invalid card, invalid time, door alarm, the door opened out
9. All Weigand interface is compatible 26,34,37 agreement with optocoupler protection.
10. sends data, quantitative restrictions transmission from the controller
11. Support individual settings for each card is valid
12. All access devices support a mixed installation
13. with the support and attendance software, on-line patrol function
14. support multi-user multi-machine management and monitoring in real-time
15. Support network camera, with multi-functional electronic map, enabling real-time network monitoring and video capture
Warrenty:
For the non-human factors of product quality issues, NORDSON offer three-year warranty for access control panel, electric bolt and electric strike;
three-year warranty services for electromagnetic lock;
one year warranty for exit button, bracket, and power supply.The customers should take charge of the material and the maintain fees if the product damaged under other conditions.
Company information:
Nordson Electronic Co., Limited was founded in 2006, and now we are one of the most professional and comprehensive providers of access control solution in China.
Nordson's products sell and be agent in more than 100 countries and regions, such as USA, EU, Middle East, Southeast Asia, Australia, Brazil, India,Russia etc. Besides, Nordson provides OEM and ODM services also. Nordson's products are widely used in business institutions, government agencies,residential communities,universities,etc.
Products we could provide are below:
Electric Lock
Single Electromagnetic Lock Series,Double Electromagnetic Lock Series, Embedded Electromagnetic Lock Series,Brackets series for Electromagnetic lock,Electric Bolt Lock,Electric Cabinet Lock,Bracket for Electric Bolt Lock Series,Electric Strike, Mechanical lock series, Door Holder,Electric Control Lock,Door Loops
Biometric Solutions
Fingerprint Standalone Access Control Terminal,Network Fingerprint Access Control & Time Attendance Terminal,Face & Fingerprint Time Attendance Terminal, Fingerprint Sensor,Access Control Panel,Biometric Locks.
Guard Tour System Electric Locking Devices
Inductive Guard Tour System,Wireless Guard Tour System,Event Record Guard Tour System,Check Point Button and Staff RFID Tag,Guard Tour Management System Software.
Opening & Closing
Automatic Swing Door Opener System,Door Closer Series.
Release&Sensor&Power Supply
Exit Switch And Button,Power Supply for Access Control.
Access Card Reader
Card Reader,Card Issuer,HID series Access Control,2.4G Omnidirectional/Directional Active UHF RFID Card Reader.
RFID Card&Doorbell&Accessory
RFID Card,ABS Keyfob,HID RFID Card,Accessory of Access Control System.
Door contact
Surface Mounted Magnetic contacts,Overhead magnetic contacts,Recessed Mounted Magnetic contacts.
