Stacker Crane Automatic Storage Retrieval System

Production Description
The stacker-crane is an "electromechanical system" which
made of a lifting device, the elevator, and a handling device
with the telescopic forks.

Overview:
Stacker Crane Automatic Storage Retrieval System

Feature*Stacker-cranes are designed for the automated storage and retrieval
  of unit loads, in high-bay warehouses.


*They travel in aisles equipped with guide rails, electrical supply, data
  transmission and control systems.


*To ensure the storage and retrieval functions, the stacker-crane carries out three types of movement : long-travel, lifting and picking.

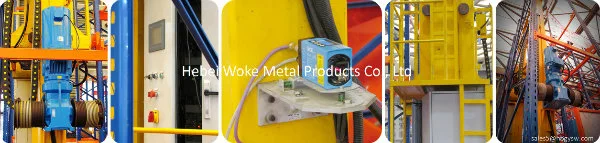

Details View and Parameter:
Stacker Crane Automatic Storage Retrieval System
Stacker Crane Parameter
TypeSingle Columns; Double Columns
Picking System via Radio Shuttle
/roller conveyor
optional
Maximum Height40m
Telescopic ForkSingle deep; double deep
Rated Load200-2000kg
Max. Drive Speed180m/min
Max. Drive Acceleration0.5m/s2
Max. Lifting Speed60m/min
Max. Lifting Acceleration0.5m/s2
Max. Fork Speed45m/min
Max For Acceleration0.5m/s2
Optional Shuttle CarYes
Guide Rail30kg steel rail; 38kg steel rail
MotorSimens
Power Supply ModeHxPnR
OperationPLC manual; semi-automated; Automated
Working Temperature RangeFrom -30ºC to +40ºC

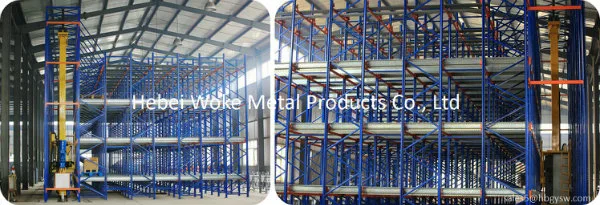

Sample Picture via shuttle racking system:
Stacker Crane Automatic Storage Retrieval System


Certification:
SGS Certification ISO 9001

Company information:
We Hebei Woke Metal Products Co., Ltd was founded in 1996, As a large scale metal products processing enterprise, specialized in manufacturing store shelves&racks, and supplying related facilities, within one set of R&D, design, producing, sales and service, our brand, HEGERLS,is known as shelf expert, China Top Brand, receiving National Inspection free Product honorary title.
We have been supplying facilities for SINOPEC, Petro China, GM, Lenovo, Coco cola,Nestle,etc.

Packing terms:
standard packing: carton, films,

Shipping:
full container by 20' fcl or 40'ft or 40' HQ
less than container LCL

Payment terms:
TT, L/C or negotiated

Our Services:
1, OEM service is available.
2, Customized sizes and specifications are welcomed.
3, Free rack layout design for your warehouse.
4, We are supplying all the related facilities, as pallets, hand truck,storage cage,etc.
5, Assemble instructions support.
6, At least one year warranty with free exchange if has any quality issues.

For Details Quotation:
Please offer us the following information in details, so we can give you the exact quotation:
1) Size of your warehouse;
2) Full details of size L*D*H;
3) How many bays you want;
4) How many layers you want;
5) Loading capacity of each layers;
6) RAL color you require;
7) Drawing (if available).
